1. Main Features:
- Streamlined design originated from EU, the machine frame is a whole through overall welding and annealing treatment.
- Reliable Germany Rexroth integrated hydraulic system and hydraulic transmission; the design can effectively reduce problems caused by leakage of hydraulic fluid.

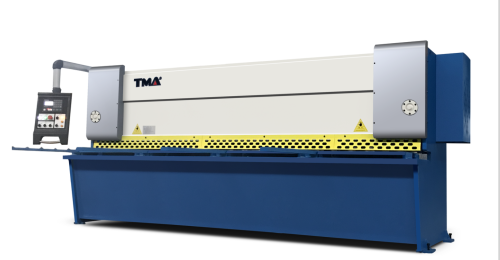

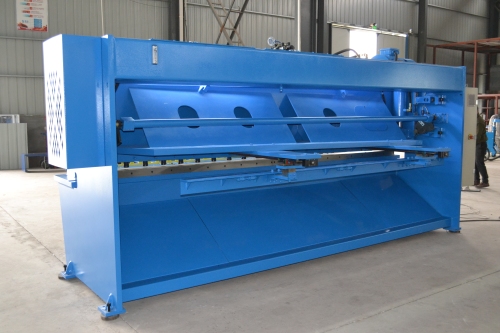

- Hydraulic swing beam shearing machine is one kind of equipment by swinging the upper blade to shear plate with smaller shearing angle and distortion, improving shearing quality.
- Backgauge is adjusted by high-precision ball screw driven by E21S controller, during the process frequency convertor prevent positioning device horizontal swinging, significantly improving positioning accuracy.
- Light aligning device, convenient for manual operation; pressure cylinder with built-in spring mechanism and bottom end furnished with special material gasket to prevent aluminum or other soft materials from being imprinted.
- Made by high-quality alloy tool steel, the machine can meet the requirements of impacting load and high wear resistance when working.
- Light and practical cantilever referring to man-machine engineering design, easy NC operation interface with features of high precision and more comfortable.
- The worktable adopts the rolling steel ball to reduce the frictional resistance, protect the work piece surface; novel protective devices complying with safety specifications: protecting the operator’s personal safety; ingenious design: petty material can be cutter easily.
- Front material supporter is equipped with Perpendicularity and positioning regulator to ensure the cutting accuracy, easy operation, practical and efficient.
- Rapid adjustment mechanism for rearranging blade clearance, simple operation by hand and adjusting steplessly.
2. Standard Configuration:
- ESTUN E21S CNC controller
- Backgauge X-axis electric control
- DELTA frequency converter
- Controller suspension arm and front material supporter
- HIWIN ball screw and polished bar, control accuracy 0.05mm
- Germany EMB tube connector
- Germany Bosch Rexroth integrated hydraulic valve
- Germany Siemens main motor
- France Schneider electrics
- Hydraulic and electrical overload protection
- Light align
- Blade materials (6CrW2Si)
- South Korea KACON petal switch
