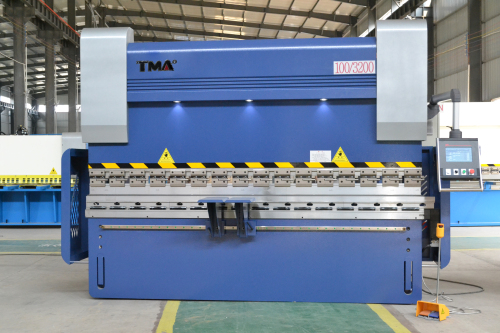

CNC Hydraulic Press Brake 3+1 Axis

Item No.: WC67K-125T/3200
WC67K Series
CE, ISO SGS Certification
Delivery Time: 15-20 Days
After-Sales Service: 2 Years
Free Shipping Insurance
Request Quote

. Main Features:

  • Streamlined design originated from EU, heat treatment of machine frame, high rigidity workbench, optional mechanical compensation device, to ensure the precision of bending
  • Hydraulic synchronous control and Delem CNC programmable controller guarantee precise repeatability and easy use.
  • Integrated hydraulic system ( Germany Bosch Rexroth ) can be automatically switched to slow bending status.
  • X ,Y-axis realize accurate positioning function through CNC DA41S controller programming and servo motor.
  • Latest servo response hydraulic control technology, the machine tool is more stable and reliable.
  • Optimal parameter ratio, best core configuration guarantee stable performance and more convenient for operation
  • WC67K series machine is equipped with single-axis backgauge system, single-axis bending angle system and V-axis compensation function combining with customized dies, any type irregular workpieces can be done

2. Main Configuration

  • Holland DELEM DA41S controller
  • Controller controls and adjusts Y-axis and X-axis
  • Servo drive and control positioning of X-axis and Y-axis
  • Adopting HIWIN ball screw and linear guide rail, accuracy 0.05mm
  • Front supporter bracket
  • Germany Bosch Rexroth hydraulic valve block
  • Germany EMB oil tube connector
  • Germany Siemens main motor
  • France Schneider electrics
  • Hydraulic & electrical overload protection
  • Upper and lower dies(86°, R0.6mm, material: 42CrMo)
